HDMI ARC Audio Adapter,Musou 192KHZ HDMI ARC Audio Extractor HDMI ARC or Digital Optical Toslink Coaxial to Optical or Analog 3.5mm L/R Stereo Audio Splitter

UPC：799392893245

HDMI ARC Adapter (Audio Return Channel) HDMI ARC audio adapter can extract HDTV or projection audio that supports ARC and convert it to the audio format you need for output.(Note: If you need to use the HDMI ARC channel to transmit audio, the HDMI device (TV or projection, etc.) must support the ARC function and 19+1 HDMI cable require

Audio Output Simultaneously: This HDMI ARC Adapter can send audio from TV (Support ARC function) to Optical/ Coxial/ 3.5mm/ L/R audio through ARC Adapter via HDMI/ARC interface and out audio simultaneously. (NOTE: It is Incompatible Dolby AC3/ Dolby Digital Plus etc., Please Set the Audio Output to PCM or LPCM before Using)

Multiple types of audio output: HDMI ARC to Optical Toslink(SPDIF) RCA(L/R) Stereo Analog Outputs Audio 3.5mm Audio Output. Optical Toslink supports incoming 2.0CH, 5.1CH Dolby Digital, DTS (Note: Not support Dolby Digital Plus and above); Note: If you are using stereo R/ L or 3.5mm jack output, this unit can only support LPCM/ PCM audio format input(Note: Dolby is not supported at this time)

Plug and Play: Easy to Install and simple to operate. Perfect audio converter DAC and HDMI ARC adapter extractor for television to output audio to soundbar, amplifier, speakers or headset (Note:After connect this HDMI ARC DAC Adapter,the signal converter can not adjust receiver's volume)

Product description

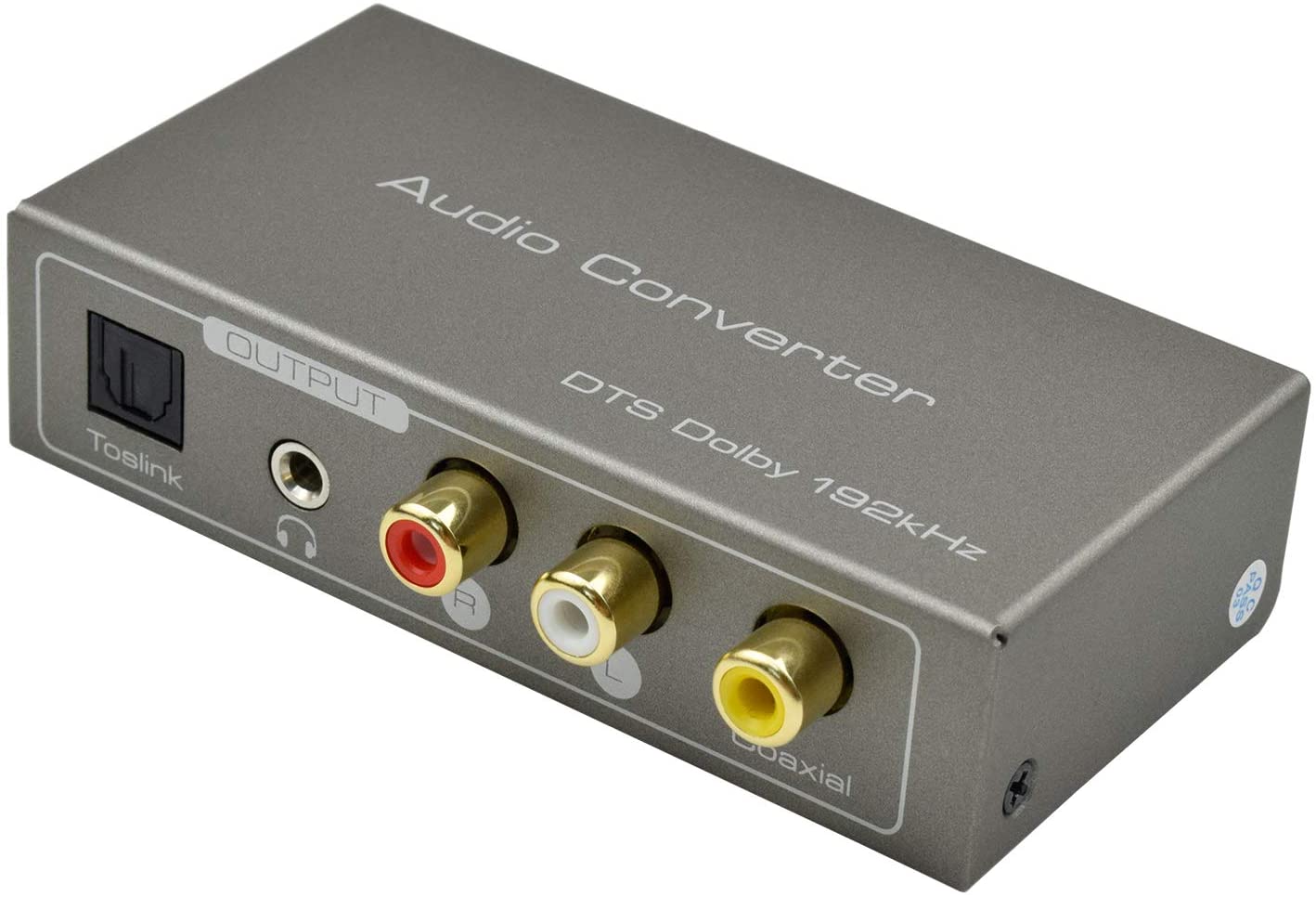

Musou HDMI ARC Audio Adapter supports Toslink, Coaxial or ARC audio input then Toslink/Coaxial/ L/R or 3.5mm headphone out to soundbar, Speaker, home theater, A/V receivers, etc. Perfect audio converter and HDMI ARC adapter extractor

Note:

1. If you are using stereo R/ L or 3.5mm jack output to your audio receiver, please set your audio source(such as your TV) to PCM/ LPCM. This unit can not support 5.1 or 7.1 audio via stero R/ L or 3.5mm jack output.

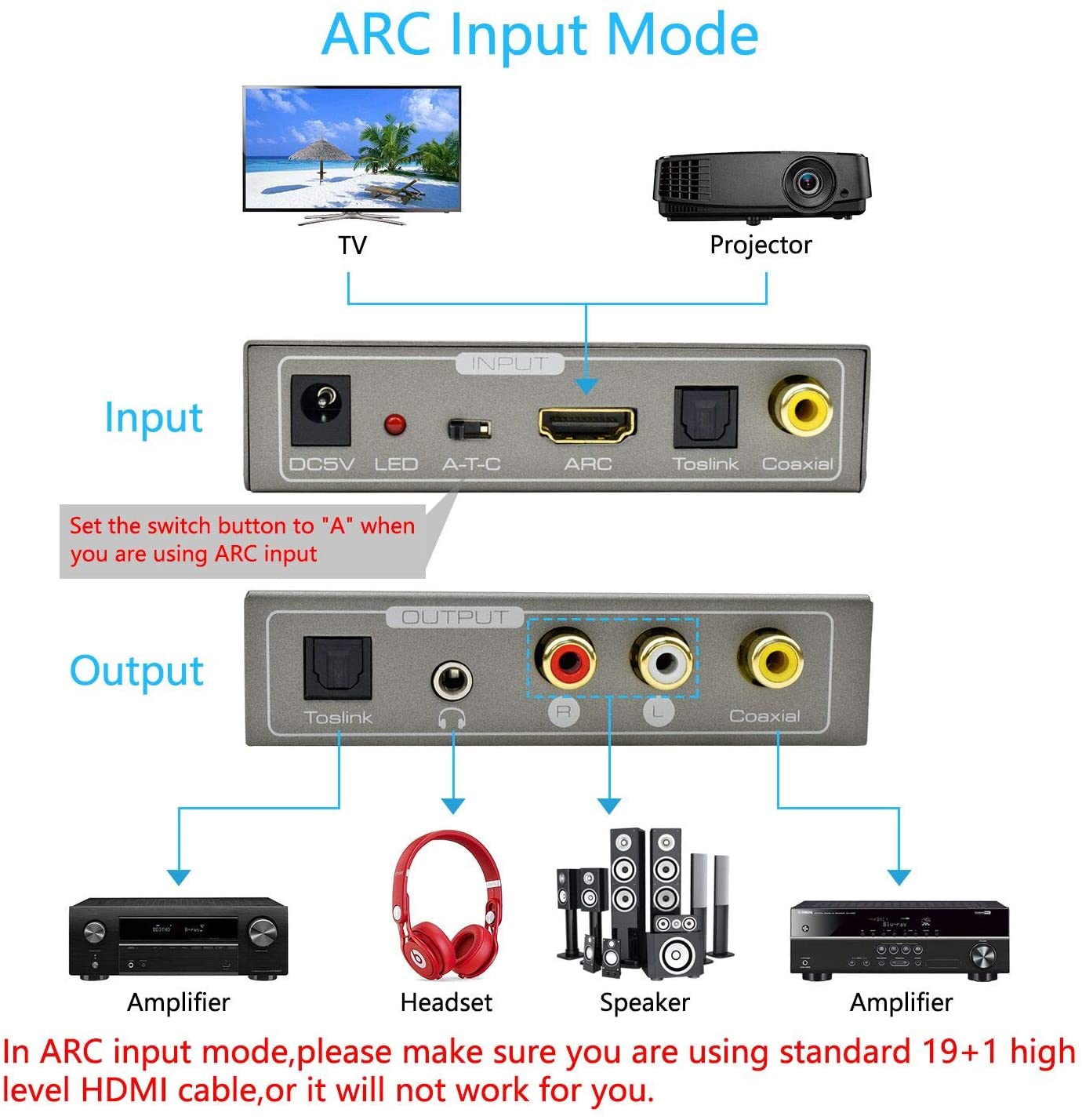

2. If you are using HDMI ARC input, please make sure you are using standard 19+1 high level HDMI cables.

3. Make sure the power supply is properly connected (5V1A), and when connecting to different output ports, you need to selectively turn off Dolby sound (Dolby 5.1, Dolby +).

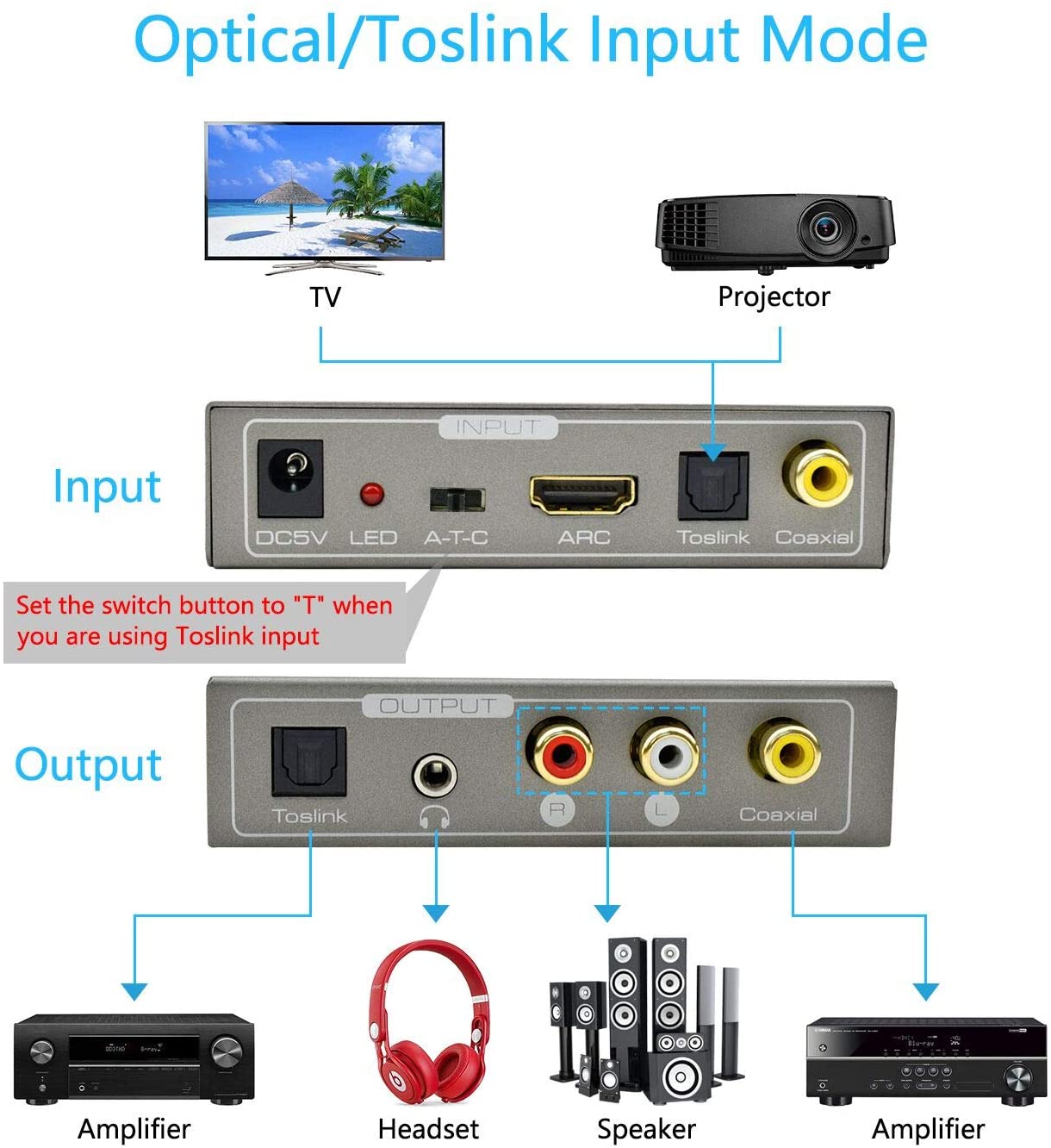

4. Some TVs need to set the -audio external output- option, if your TV does not have ARC function, please use optical fiber or coaxial interface to connect. Switch -A-T-C- needs to be adjusted to the corresponding position in time.

Specifications:

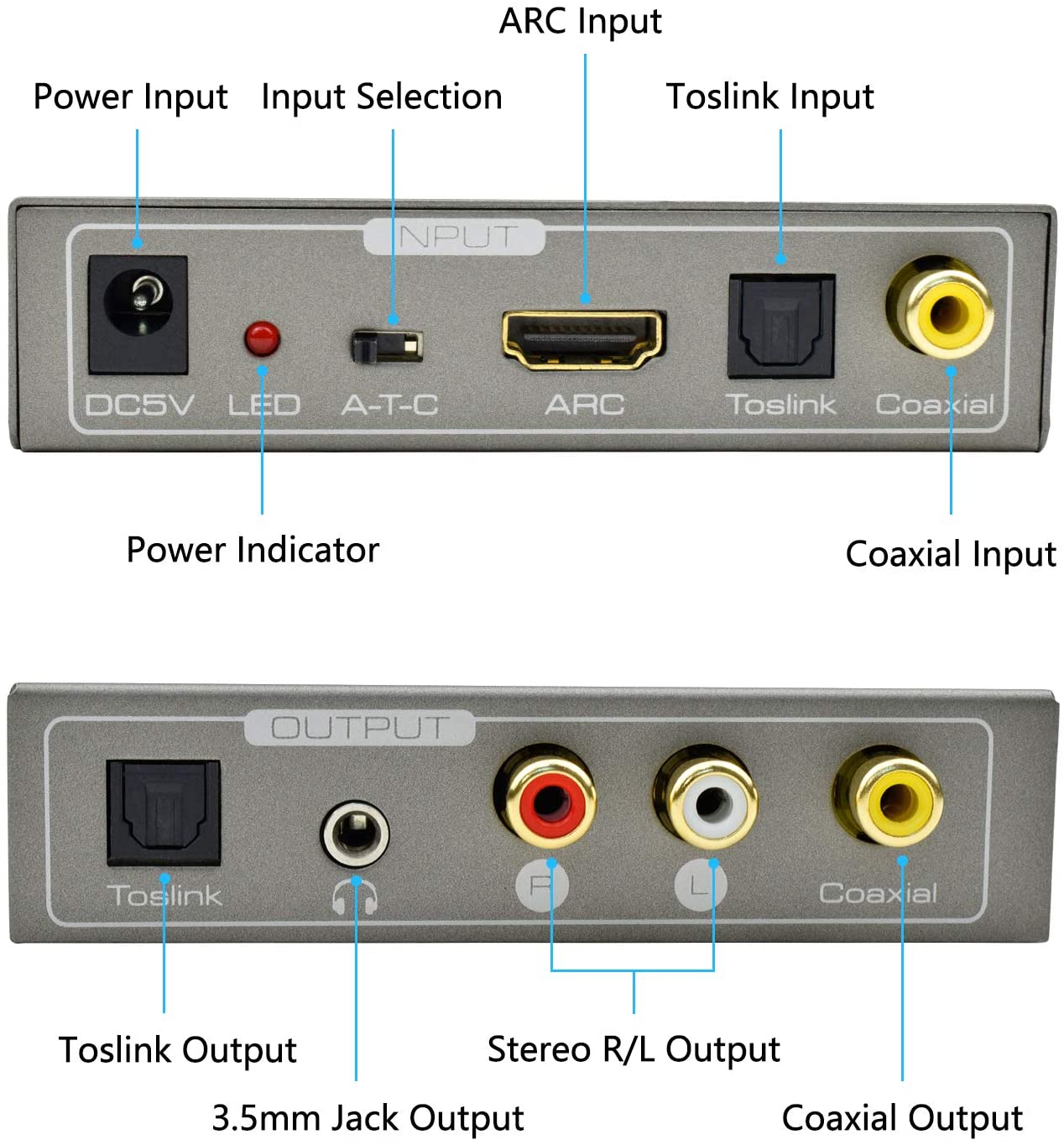

1. Input: Toslink x 1, Coaxial x 1, HDMI ARC x 1

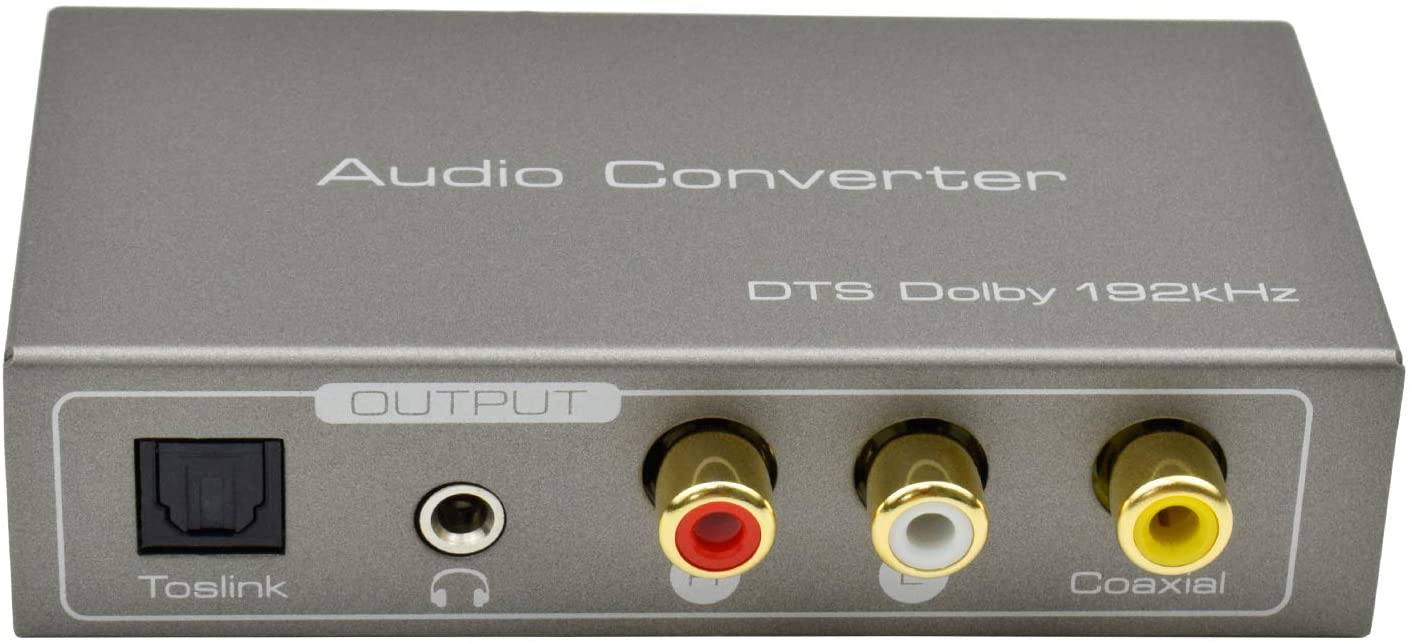

2. Output: Toslink & Coaxial & Stereo R/ L & 3.5mm jack(simultaneously)

3. Support audio format: LPCM2.0/ DTS/ Dolby-AC3

4. Output cable distance: ≤10m(Use the optical fiber cable loss less the 0.2Db/m )

5. Powered by 5V/ 1A power adapter

6. Support last time working state memory when power off

7. Dimension (L x W x H): 114 x 48 x 23 (mm)

8. Weight: 138g

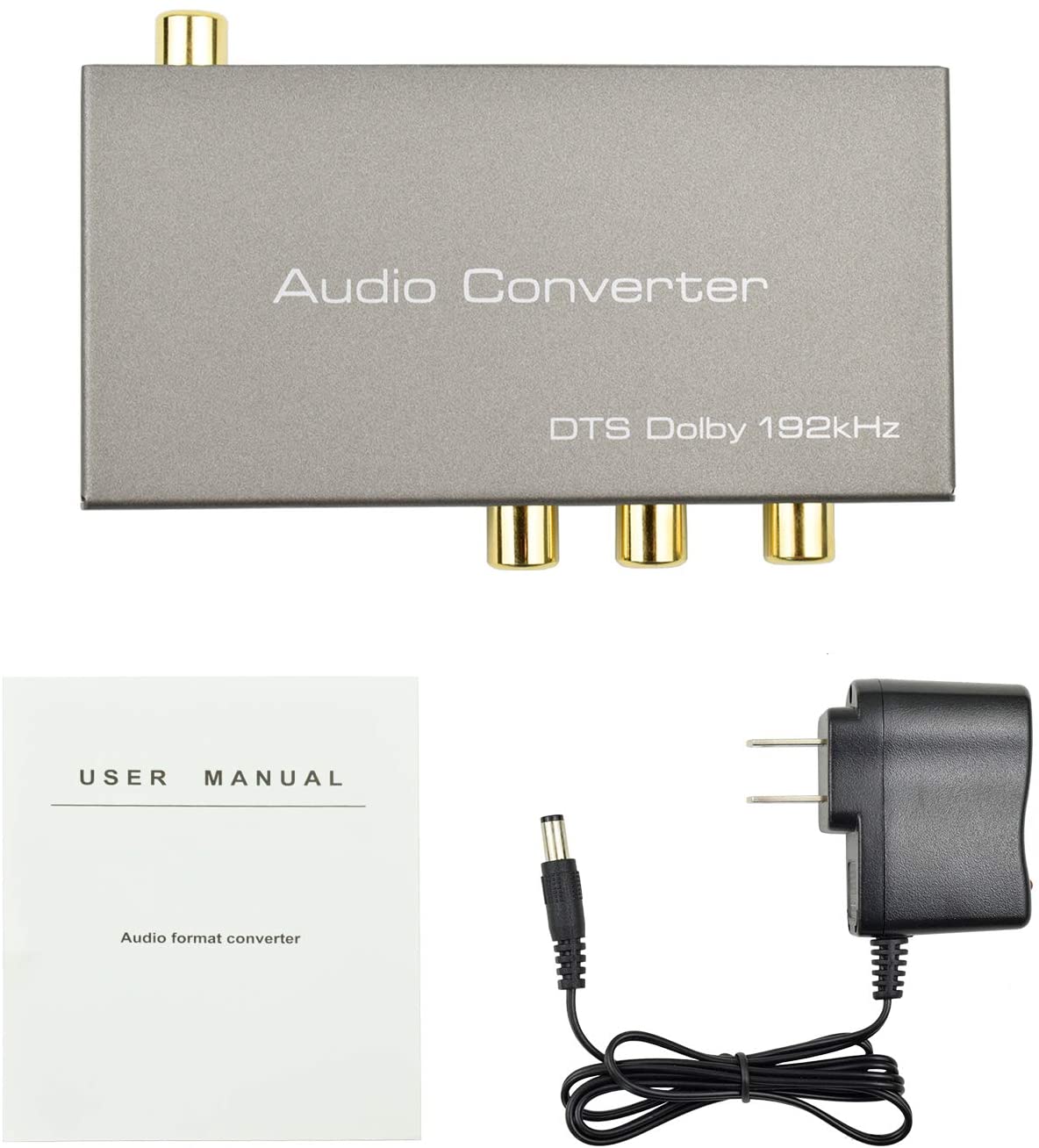

Package Contents:

1x5V/1A Power Adapter

1xUsers Manual
